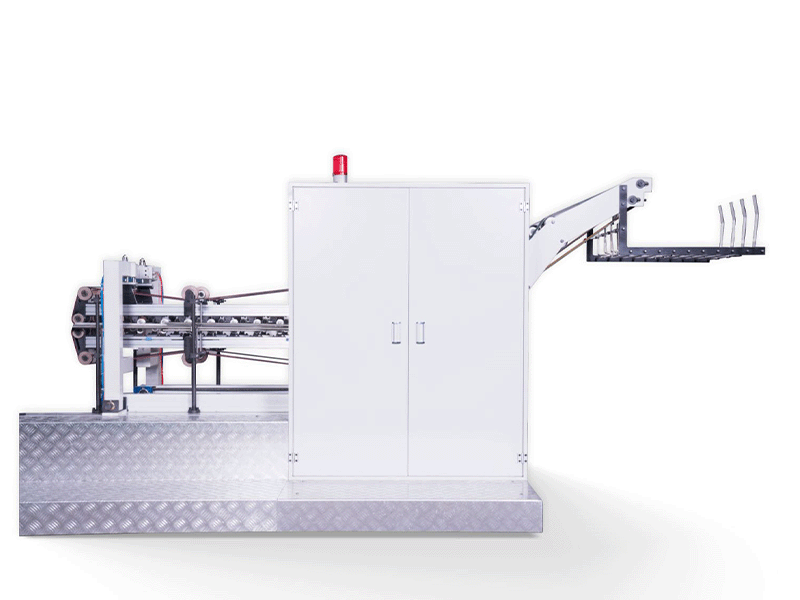

Grade A Reinforced Valve Bag Forming Machine

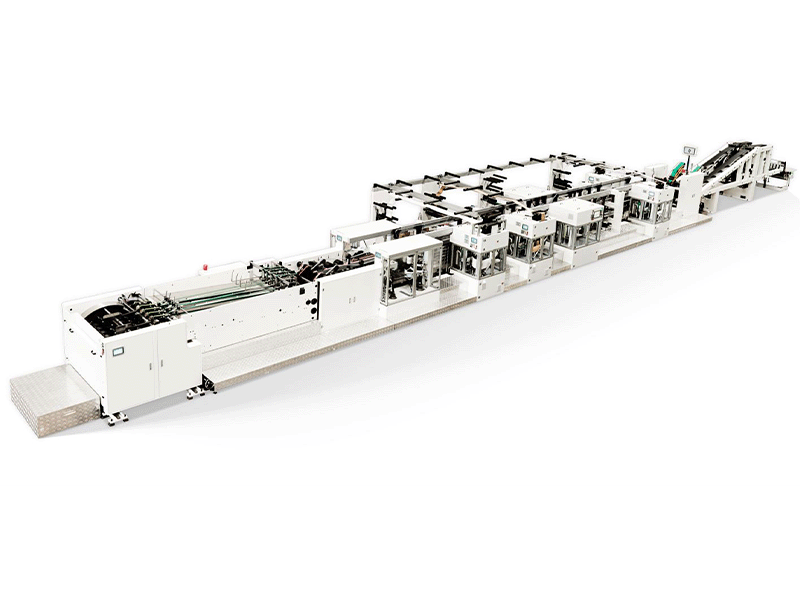

The entire line adopts modular design, allowing customers to flexibly choose configurations according to their own production needs, thereby achieving the best cost-effectiveness and production efficiency. By simplifying the data input process, production components can be adjusted to adapt to different production processes. Each key process control point is equipped with a servo intelligent system to ensure precise position adjustment and automatically store relevant position data, achieving a "one click" memory function. In addition, the device's exterior design is simple and high-end, which helps to enhance the overall image of the production environment.

Inquiry

Description

Product Features

Capable of intelligent production of mortar, chemical food, complex types of valve mouth paper bags, single head valve pockets, and paper plastic composite valve pockets. The size adjustment of the specifications only requires one click movement and comes with memory performance, improving production quality and efficiency in production;
Equipped with valve ports (optional dual valve ports), internal reinforcement (optional), external reinforcement (optional), and small S compaction (optional ordinary compaction), it can provide flexible equipment configuration for production clients.;
Easy to operate and learn, intelligent adjustment can improve production efficiency for customers;

Enping Desheng Intelligent Technology Co.,Ltd. (quotation for bottom pasting machine configuration)
Model	Name	Bag Types Capable of Production	Specifications
BM2022-2F -2B-2D	Grade A Reinforced Valve Bag Forming Machine	Standard Cement Bags	Finished Bag Length:370-900 mm	Bag Tube Width:320-600 mm
		Mortar Bags	Bottom Width Dimension:90-200 mm	Valve Mouth Length:100-250 mm
		Reinforced Chemical Bags	Outer Reinforcement Length:100-520 mm	Inner Reinforcement Length:100-520 mm
		Reinforced Food Grade Bags	Bottom Width Tolerance:≤3 mm	Finished Product Tolerance:±3 mm
			Valvetypes include single paper inlets,film laminated inlets,ultrasonic sealed valves,heat sealed valves,left external valves with snap fasteners,double layer ultrasonic sealed valves,and large base valves with small inlets.

Faq

1.How does the machine ensure the accuracy of filling and sealing?

The machine is equipped with advanced weighing and filling systems that ensure precise measurement of product quantities. It also features accurate temperature and pressure control mechanisms for consistent and reliable sealing, maintaining the quality and integrity of the packaging.

2.Are the machines suitable for food-grade applications?

Yes, our machines are constructed from high-quality, food-grade stainless steel, ensuring compliance with hygiene standards required for food-grade applications. They are designed for easy cleaning and maintenance, which is crucial for maintaining hygiene in food packaging.

3. Can the machine be integrated into existing production lines?

Absolutely. Our efficient packing machines are designed for seamless integration into existing production lines. Customization options and support are available to ensure compatibility and enhance overall production efficiency.

4.What safety features are included in the machine?

The machine comes equipped with multiple safety features, such as emergency stop buttons, protective guards, and automated shutdown protocols in case of malfunction. These features ensure operator safety and prevent accidents, enhancing the overall safety of the workplace.

5.Are your machines eco-friendly?

Yes, our machines are designed to optimize material usage and minimize waste, aligning with eco-friendly practices. They support sustainable business practices by reducing the environmental impact of packaging processes, which meets the growing demand for environmentally responsible solutions.
